視野計

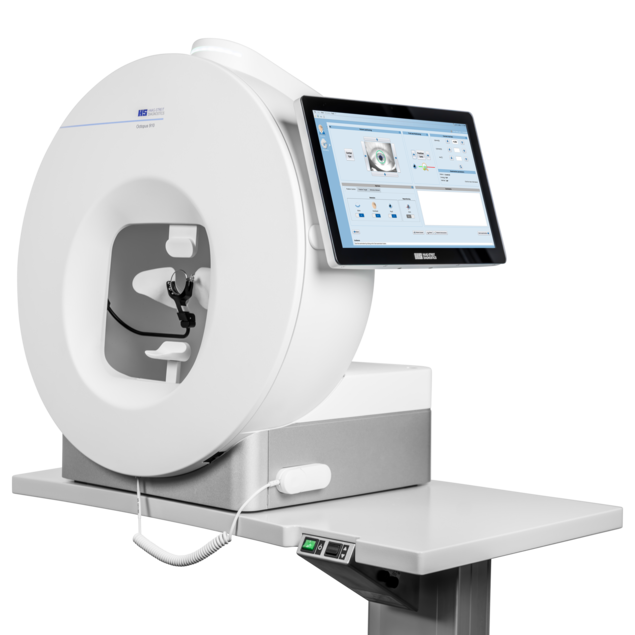

Octopus 910
緑内障管理の包括的ソリューション
多用途な全視野投影型視野計であるOctopus 910は、早期発見から進行期の解析まで、緑内障管理のあらゆる段階をサポートします。信頼性の高い視野検査とスマートガイダンス技術を融合し、信頼できる検査結果と効率的なワークフローの実現に貢献します。●販売名 オクトパス 910 ●製造販売業者 アールイーメディカル株式会社 ●医療機器製造販売届出番号 27B1X00001HS0910
Octopus 910:信頼・包括的・スマート
See Octopus 910 in action
| Octopus 910 basic | Octopus 910 Pro | |
|---|---|---|
| Test methods | ||
| White-on-white perimetry SAP | ● | ● |
| Blue-on-yellow perimetry SWAP | ● | ● |
| Flicker perimetry | ● | ● |
| Blue and green-on-white perimetry | ● | ● |
| Red-on-white perimetry | ○ | ● |
| Networking | ||
| DICOM connectivity | ○ | ○ |
| EMR connectivity | ● | ● |
| Remote control | ● | ● |
| Connections: USB, Ethernet, Display Port | ● | ● |
| Statistical export | ○ | ● |
| Visual field import (Octopus 101,123,300,600,900, HFAII & HFA3) | ● | ● |
| Test strategies | ||
| TOP Strategy (full threshold, 2-4 min) | ● | ● |
| Dynamic (adaptive step size, 6–8 min) | ● | ● |
| Normal (4-2-1 bracketing, 10–12 min) | ● | ● |
| Other: Low Vision, 2-Level, 1-Level, 1 Minute Screening | ● | ● |
| Test library | ||
| Central: F, M, 10-2, G, 24-2, 24-2C, 32, 30-2, S28 | ● | ● |
| Peripheral: 07, C40, C64, C76, C80 | ● | ● |
| Driving: Esterman (monocular, binocular), EDT, German driving licence | ● | ● |
| Disability: BT (Blepharoptosis), BG (German Blindness) | ● | ● |
| N1 (Neurological), D1 (Diabetes), B (Blind spot) | ● | ● |
| Custom test | ○ | ● |
| Visual field analysis | ||
| Global indices (MD, DD, LD, sLV, CsLV) | ● | ● |
| Reliability indices (FP, FN, RF) | ● | ● |
| VFS Visual Field Score | ● | ● |
| GCT - Glaucoma Cluster Test | ● | ● |
| Glaucoma staging: Brusini, HPA | ● | ● |
| Defect curve | ● | ● |
| Cluster & polar trend | ● | ● |
| Examination support | ||
| Motorized trial lens holder | ● | ● |
| Motorized single chin- & forehead rest | ● | ● |
| Automatic pupil positioning | ● | ● |
| Automatic trial lens holder positioning | ● | ● |
| Fixation control | ||
| Video eye monitoring | ● | ● |
| Pupil detection | ● | ● |
| Blink detection | ● | ● |
| Automatic repositioning | ● | ● |
| Head detection | ● | ● |
| Autovertex | ● | ● |
● standard | ○ optional | − not available | □ not recommended
