/ 製品 / 診察機器 / アプラネーショントノメーター / Applanation Tonometer 900 & 870
アプラネーショントノメーター

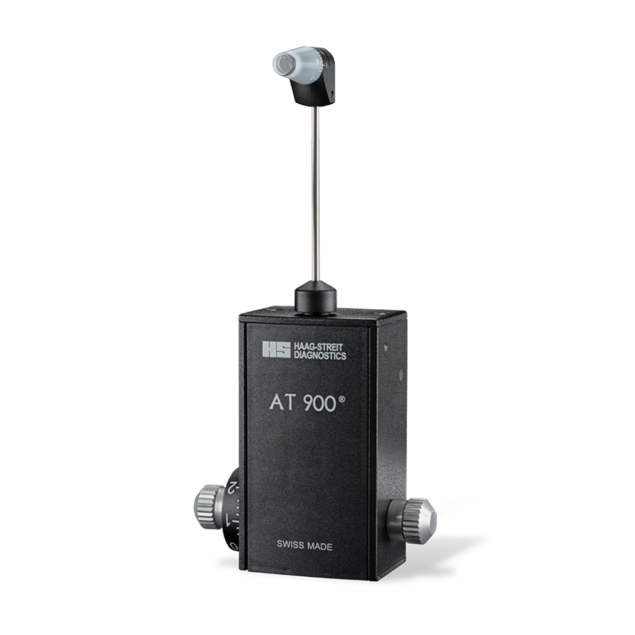

Applanation Tonometer 900 & 870

ベストプラクティス

ゴールドマン圧平式眼圧測定は素早い測定と再現性の高さで、眼圧測定のゴールドスタンダードとしての位置を不動のものにしています。ゴールドマン博士が提唱した原理に基づき、50年以上にわたり数百万人もの患者に使用されていて、その結果が実証されています。
01 Product information 02 Downloads

長年の実績、世界標準の眼圧測定

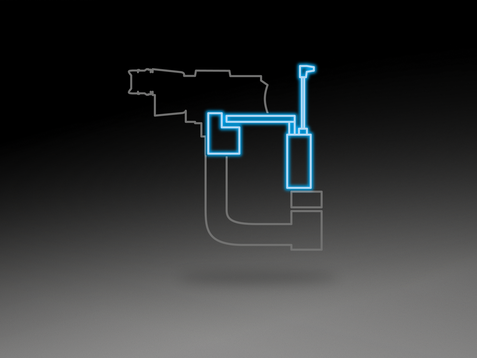

AT 900 Type BQ / BP 900

For BQ 900 and BP 900 slit lamps

The device is mounted permanently on the microscope arm. It provides a parking position and can be easily placed into working position. The measurement is obtained through the right eyepiece.

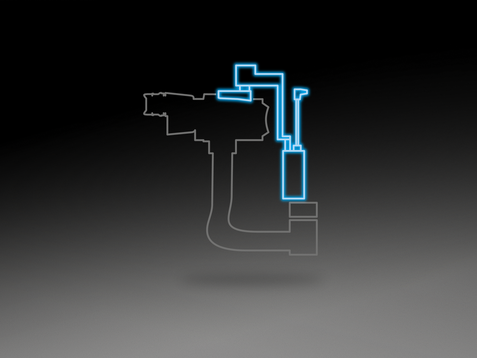

AT 900 Type R

Fits Haag-Streit BI 900 & BM 900 slit lamps, and third party models

Our device fits the Haag-Streit BI 900 and BM 900 slit lamps, as well as many third party models. Mounted on top of the microscope, it can be left on the slit lamp permanently as it provides a parking position and can be easily swiveled into working position. The measurement is obtained through the right eyepiece.

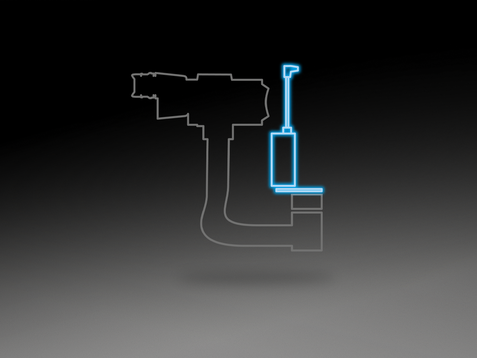

AT 900 Type T

For Haag-Streit BQ 900, BP 900, BM 900 & BI 900 slit lamps

Mounted on a guiding platform placed over the slit lamp axis: the tonometer is placed on the slit lamp only when applanation tonometry is performed. The instrument can be moved between two positions for observation through the right or left eyepiece.

Haag-Streit Tonometers

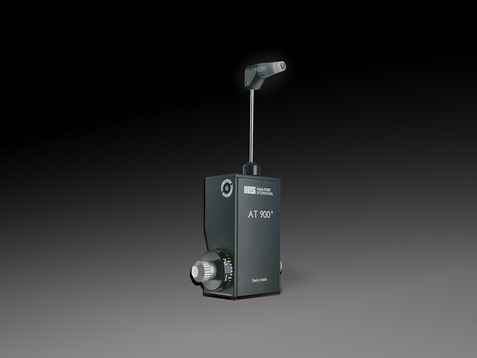

Fast and reproducible IOP measurement

Goldmann applanation tonometry has been the gold standard in tonometry for many decades. It is based on the Goldmann principle—tried and tested during more than 50 years of usage with millions of patients.

Measuring principle
Goldmann principle ● ● ● ●
Measuring force generated
Through leverage weight − ● ● ●
Via spring weight ● − − −
Measurement range
Measurement range 0 – 80 mmHg 0 – 80 mmHg 0 – 80 mmHg 0 – 80 mmHg
Meridian setting
Meridian setting ● ● ● ●
Measurement deviation
The measurement deviation in the measuring prism is in the measuring range from 0 – 58.84 mN and amounts to a maximum of ±1.5% and to a minimum of ±0.49 mN of the nominal value. ● ● ● ●
Working settings
Weight (kg) 0.85 kg / 1.87 lbs 0.78 kg / 1.72 lbs 0.73 kg / 1.6 lbs 0.49 kg / 1.08 lbs
Width ≤0.49 mN ≤0.49 mN ≤0.49 mN ≤0.49 mN
Working temperature 10° to 35° C / 50°F to 95°F 10° to 35° C / 50°F to 95°F 10° to 35° C / 50°F to 95°F 10° to 35° C / 50°F to 95°F
Tonometer fixation
BQ 900 − ● − ●
BP 900 − ● − ●
BI 900 − − ● ●
BM 900 − − ● ●
BX 900 − □ − −
Third party slit lamps contact your local distributor contact your local distributor contact your local distributor contact your local distributor
Tonometer prisms

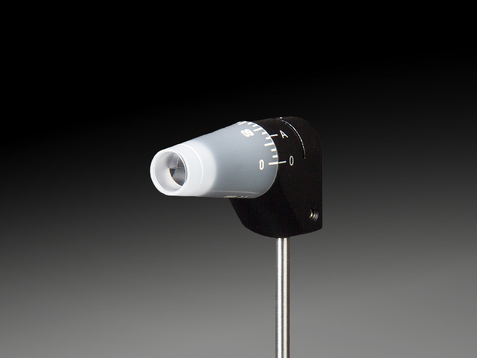

Goldmann tonometer prisms ● ● ● ●

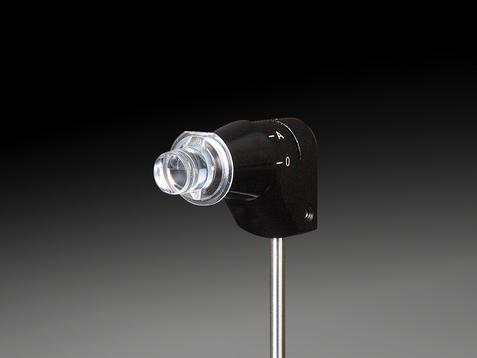

Tonosafe ○ ○ ○ ○
● product-comparison.table-info.default | ○ product-comparison.table-info.optional | − product-comparison.table-info.notAvailable | □ product-comparison.table-info.notRecomended
