自動視野計

Octopus 600

Central field static perimeter

The Octopus 600 offers standard central field white-on-white perimetry and fast screening in one compact and dark room- independent device. It includes easy-to-read and sensitive progression analysis and networking capability, thanks to its integrated EyeSuite software.
01 Product information 02 Downloads

Central field white-on-white & fast screening perimeter in one compact device

Central field static perimetry

Covering all essential needs

The Octopus 600 offers a comprehensive library of standard central visual field tests. It includes the G, M, 24-2, 24-2C, 30-2, 32 and 10-2 patterns and tests a full threshold in just 2-4 minutes with the TOP strategy.

Read more

Pulsar and screening

Screening in typically less than one minute

The Octopus 600 allows for fast screening and a quick distinction between normal and abnormal visual fields. Screening can be performed with both standard white-on-white or the patient-friendly Pulsar perimetry designed for early glaucoma detection.
Read more

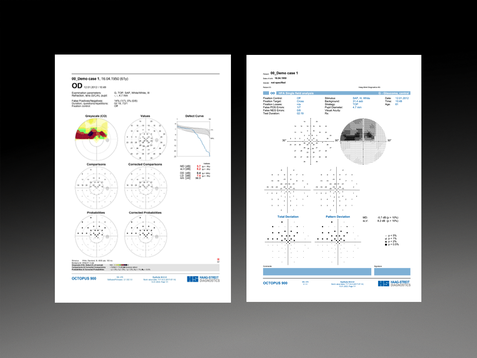

Octopus & HFA printouts

Flexibility for your practice

Thanks to its flexible printouts, results can be viewed in Octopus and HFA-style. There are standard printouts like the 7-in-1 and the HFA Single Field Analysis. Series and trend views support identification of change and the "both eyes" display is useful to identify neurological defects. Various customization options complete the offering.

Read more

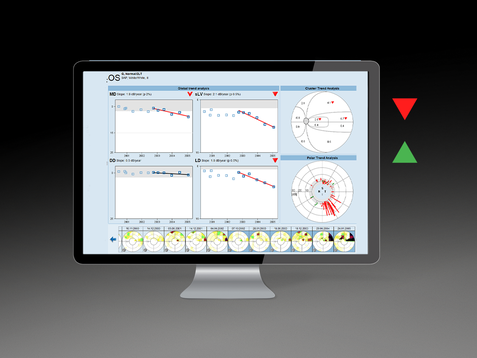

EyeSuite glaucoma analysis

View glaucoma from different angles

The Octopus 600 allows you to view glaucoma visual field series form different angles. Take a look at the highly sensitive Cluster Analysis & the Polar Analysis for structural comparision for single field and progression.

Read more

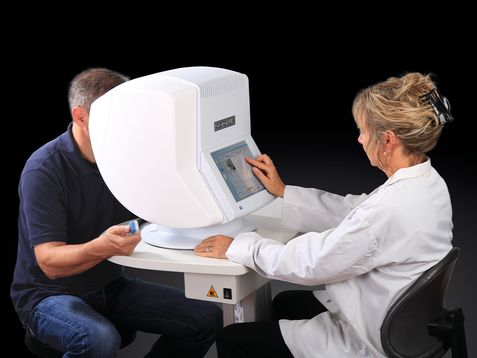

Perimetry simplified

Usability & ergonomics

The compact Octopus 600 fits almost anywhere and can be operated reliably outside of a darkroom. Its design supports ergonomics positioning for the operator and the patient.

Read more

EyeSuite

Integration into practice workflows

Our EyeSuite software has been designed to support patient flow in busy practices. It controls many Haag-Streit devices and allows for them to be easily networked, whether that's with other Haag-Streit devices, an office computer, or an EMR system— all without the need for any third-party software.

Stimulus projection
Stimulus size (Goldmann) III III
Max stimulus intensity 150 cd/m² 150 cd/m²
Test methods
Blue-on-yellow (SWAP) − −
Flicker − −
Red Stimuli − −
Kinetic (manual and semi-automated) − −
Test strategies
TOP Strategy (full threshold, 2-4 min) ○ ●
Analysis software
Single field view (7-in-1, single eye, both eyes, user-defined, HFA-style) ● ●
Series view ● ●
Global progression (MD, sLV, DD, LD) ● ●
Cluster Trend ○ ●
Polar/Optic Nerve Head (ONH) Trend ○ ●
Special features
Fovea threshold ● ●
Pupil measurement ● ●
Fixation Control ● ●
Accessories
Customized spherical trial lenses (-11, -12 dpt) ○ ○
PC
External PC (Windows only) − −
Integrated PC (Linux embedded) ● ●
Networking
Integrated touch screen ● ●
EMR, Ethernet ● ●
DICOM ○ ○
Connect to network printer ● ●
Connect to shared folder ● ●
Connect to remote database ○ ●
Data import
Octopus 101, 900, 123, 300 and 600 ● ●
HFA II ● ●
HFA III ● ●
Dimensions
Weight (kg / lbs) 25 kg / 55.11 lbs 25 kg / 55.11 lbs
● product-comparison.table-info.default | ○ product-comparison.table-info.optional | − product-comparison.table-info.notAvailable | □ product-comparison.table-info.notRecomended
