境界のない視野検査

フルフィールド静的および動的視野計測

さまざまな適応症に対応した検査

オクトパス900は、幅広い静的視野計測を提供します。中心視野検査用のパターン(G、M、24-2、10-2等)や、周辺視野の07検査パターンも含まれます。ロービジョン検査や、運転評価用の両眼Esterman検査、カスタムテストも提供されています。ほとんどの検査はTOPストラテジーで2~4分で完了します。

詳細

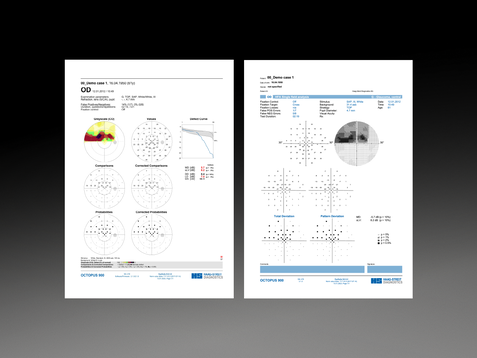

Octopus & HFAの印刷結果

あなたに合わせた柔軟性

OctopusスタイルおよびHFAスタイルで結果を印刷できます。7-in-1やHFAシングルフィールド解析のような標準的な印刷結果の他、シリーズ表示およびトレンド表示は変化の有意表示をサポートし、両眼表示は神経学的欠損を特定するのに役立ちます。さまざまなカスタマイズオプションも提供されています。

詳細

EyeSuite

Integration into practice workflows

EyeSuiteソフトウェアは、多忙な診療所での患者の流れをサポートするように設計されています。多くのHaag-Streitデバイスを制御し、他のHaag-Streitデバイス、オフィスのコンピューター、電子カルテシステムなど、サードパーティのソフトウェアを必要とせずに、簡単にネットワーク化することができます。

詳細

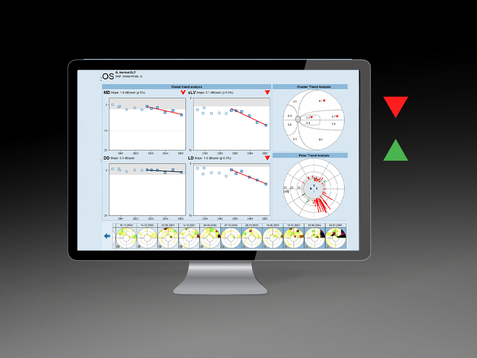

EyeSuite緑内障解析

様々な角度から緑内障を見る

オクトパス900は、緑内障の視野検査結果を様々な角度から確認できます。単一フィールドおよび進行評価が出来る高感度なクラスター解析、構造評価のポーラー解析を使用出来ます。

詳細

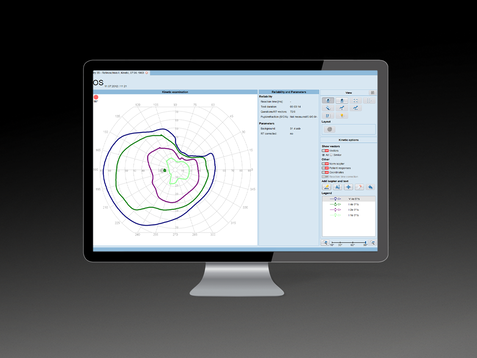

動的視野検査

最新のゴールドマン視野計

オリジナルのゴールドマン視野計が持つ同じパラメータと柔軟性を持ちつつ、よりシンプルで一貫性のある操作と、年齢補正された正常値が検査を助けます。

詳細

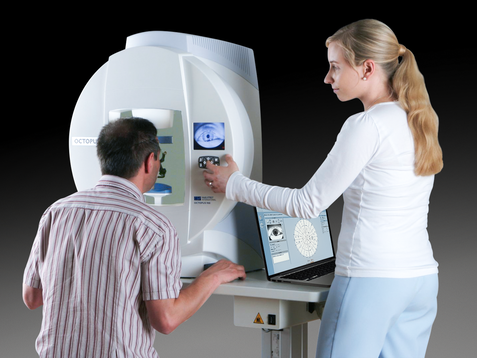

ワークフロー

信頼性の高い結果を得るためのキー

オクトパス900のユーザー志向のワークフローは、オペレーターエラーを減らし、信頼性の高い視野計測結果をサポートします。ガイド付きのステップバイステップの検査プロセス、複数言語での患者指示、固視監視による視標の自動制御などが、デバイスの使用をさらに簡単にします。

詳細
Octopus 900 Basic Octopus 900 Pro
Stimulus projection
Stimulus size (Goldmann) I - V I - V
Max stimulus intensity 10000 asb 10000 asb
Test methods
Blue-on-yellow (SWAP) ○ ●
Flicker ○ ●
Red Stimuli ○ ●
Kinetic (manual and semi-automated) ○ ●
Test strategies
TOP Strategy (full threshold, 2-4 min) ○ ●
Custom test options
Free choice of stimulus size ○ ●
Free choice of stimulus locations ○ ●
Stimulus duration (ms) 100, 200, 500, 1000, infinite ○ ●
Stimulus color (Blue, red, white) ○ ●
Background color (White, yellow) ○ ●
Background illumination (asb) 0, 4, 31, 314 ○ ●
Analysis software
Single field view (7-in-1, single eye, both eyes, user-defined, HFA-style) ● ●
Series view ● ●
Global progression (MD, sLV, DD, LD) ● ●
Cluster Trend ○ ●
Polar/Optic Nerve Head (ONH) Trend ○ ●
Special features
Motorized trial lens holder ● ●
Fovea threshold ● ●
Trial lens holder distance monitoring ● ●
Pupil measurement ● ●
Fixation Control ● ●
Accessories
Customized spherical trial lenses (-11, -12 dpt) ●
PC
Pedriatric chinrest ○ ○
External PC (Windows only) − ○
Integrated PC (Linux embedded) − −
Networking
Integrated touch screen ● −
EMR, Ethernet ○ ●
DICOM ● ○
Connect to network printer ● ●
Connect to shared folder ● ●
Connect to remote database ● ●
Data import
Octopus 101, 900, 123, 300 and 600 ● ●
HFA II ● ●
HFA III ● ●
Data export
Raw data for research ○ ●
Dimensions
Weight (kg / lbs) 12.7 kg / 28 lbs 12.7 kg / 28 lbs
● product-comparison.table-info.default | ○ product-comparison.table-info.optional | − product-comparison.table-info.notAvailable | □ product-comparison.table-info.notRecomended
